Description

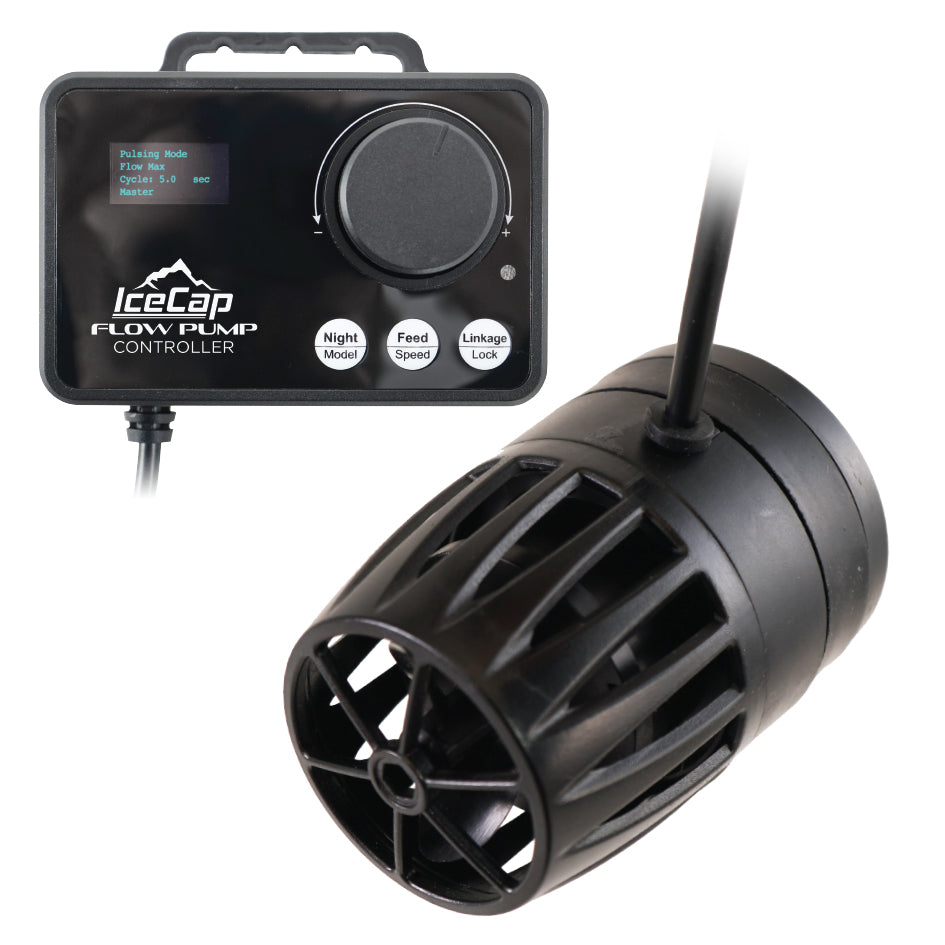

IceCap FP-60 Aquarium Flow Pump (IC-FP-60)
The IceCap FP-60 Aquarium Flow Pump (SKU: IC-FP-60) is an authentic, highly customizable directional wavemaker distributed by CoralVue to provide vital water circulation in compact freshwater aquariums and nano marine reef environments. Healthy water motion is the literal life support line of a closed aquatic ecosystem; continuous flow drives surface gas exchange to maximize oxygen levels, prevents stagnant pockets where organic waste can settle, and continuously carries nutrients to live plants and filter-feeding coral polyps. Large, bulky powerheads look incredibly distracting in smaller aquariums and easily overpower nano fish or knock over fragile corals with overly harsh streams. The IC-FP-60 solves this design hurdle by pairing a highly compact, low-profile internal pump body with an advanced external digital programmer.
Measuring a mere 2.6 x 2 x 2 inches including its internal magnetic base, the FP-60 blends seamlessly into the background scenery of your layout, preserving your display's raw visual focus. Despite its micro proportions, the pump utilizes a high-efficiency impeller array to generate up to 790 gallons per hour of wide, comfortable water movement. The included controller features a physical adjustment knob and digital buttons to jump between 10 micro-adjustable speed steps and 5 distinct wave patterns, allowing you to establish anything from a gentle freshwater stream to a dynamic, irregular marine reef surge. Engineered with safety protections like smart voltage monitoring and water shortage auto-shutoffs, the IceCap FP-60 brings professional-grade water management features to desktop and nano aquariums.
Key Features
Five Presets for Dynamic Wave Action: Choose between Pulsing (surging waves), Constant Flow (steady current), Stream (gradual ramping speeds), Random (irregular reef currents), and Cycle modes.
Automated Controller Security Lock: Features a built-in safety lock setting that temporarily disables the controller wheel and buttons to prevent accidental adjustment changes.
Protects Livestock Health: Wide-angle output nozzle spreads out the water pressure, preventing high-velocity hot spots so small fish and invertebrates can swim comfortably.
(Note: This complete wavemaker kit includes the standalone FP-60 submersible pump body with integrated wet-side magnetic mount, independent digital flow controller, external dry-side magnet pad, and low-voltage DC power supply block).
IceCap FP-Series Directional Flow Pump Matrix
| Pump Sizing Class | SKU Part Number | Maximum Rated Flow Output | Power Consumption Range | Target Aquarium Sizing Bracket |
|---|---|---|---|---|
| IceCap FP-60 | IC-FP-60 | 790 Gallons Per Hour | 1 to 10 Watts Max | 10 to 25+ Gallons |
| IceCap FP-100 | IC-FP-100 | 1,585 Gallons Per Hour | 20 Watts Max | 20 to 50+ Gallons |
| IceCap FP-200 | IC-FP-200 | 4,755 Gallons Per Hour | 35 Watts Max | 22 to 105+ Gallons |
FP-60 Pump Specifications:
Max Flow: 790gph
Max Wattage: 10w
Suggested Aquarium Size: 10-25gal
Dimensions: 2.6 x 2 x 2in (includes dry magnet)
Max Mounting Thickness: .3in
Power Supply: 100-240v input, 24v/0.5a output
FP-60 Pump Speed/Power Level Parameters:
| Speed Level | Voltage (A) | Power (W) | Flow Liters | Flow Gallons |
| 1 | 0.111 | 1 | 700 | 180 |
| 2 | 0.131 | 2 | 850 | 224 |
| 3 | 0.154 | 3 | 1250 | 330 |
| 4 | 0.2 | 4 | 1450 | 380 |
| 5 | 0.25 | 5 | 1650 | 430 |
| 6 | 0.28 | 6 | 1850 | 480 |
| 7 | 0.31 | 7 | 2000 | 520 |
| 8 | 0.35 | 8 | 2200 | 570 |
| 9 | 0.423 | 9 | 2600 | 680 |
| 10 | 0.5 | 10 | 3000 | 790 |
