Maxspect Lagoon Reef-Ready LR-120 — Rimless Reef Aquarium System

Description

A Serious Reef Deserves a Serious Foundation.

The Maxspect Lagoon Reef-Ready LR-120 brings a full 47.24 inches x 21.65 inches reef display together with a large-capacity filtration system and purpose-built cabinet.

Designed for reef keepers who want the space to create an expansive aquascape, the LR-120 combines 12mm (just under1/2") ultra-clear rimless glass, integrated overflow control, dual drain and return plumbing, a large PVC sump, dedicated refugium and equipment chambers, and an aerospace-grade aluminum cabinet frame.

This isn't simply a glass box with a stand underneath.

It's a complete reef platform designed around how modern reef aquariums are actually built, filtered, maintained and enjoyed.

Expansive Display. Thoughtful Filtration.

With an 80-gallon / 303L display and approximately 109.1 gallons / 413L of combined system volume, the LR-120 gives you substantial water volume and generous room for creative aqua scaping.

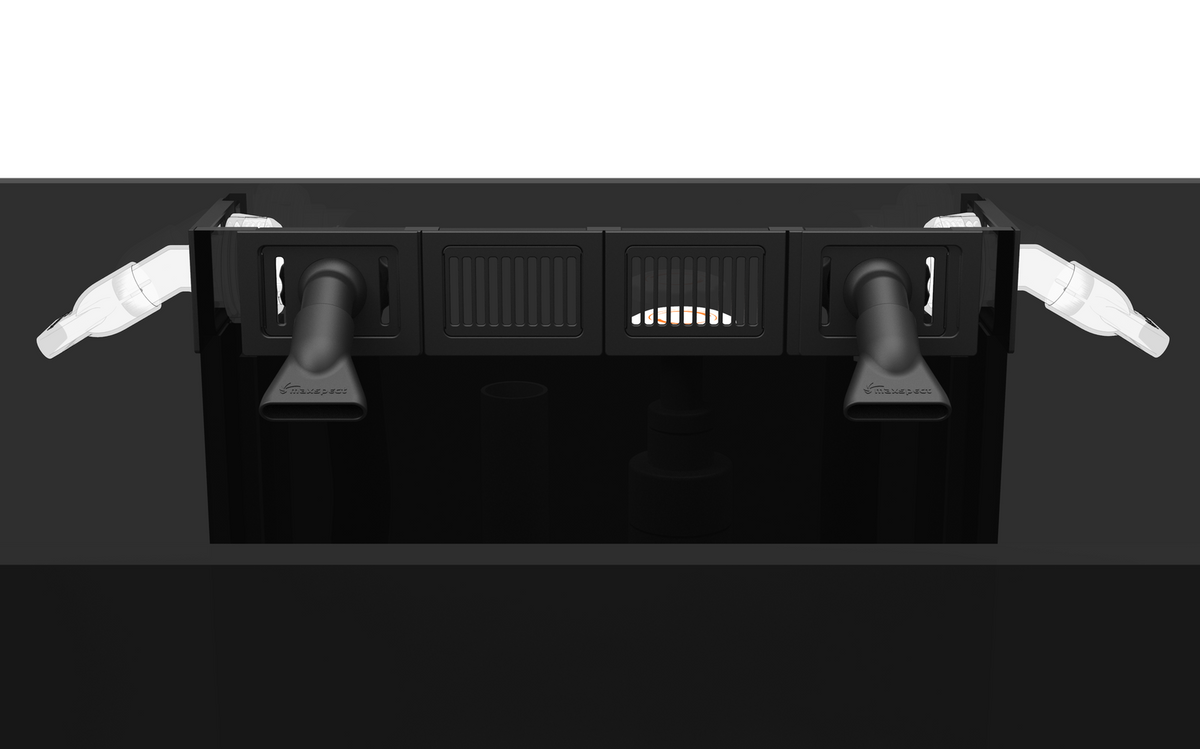

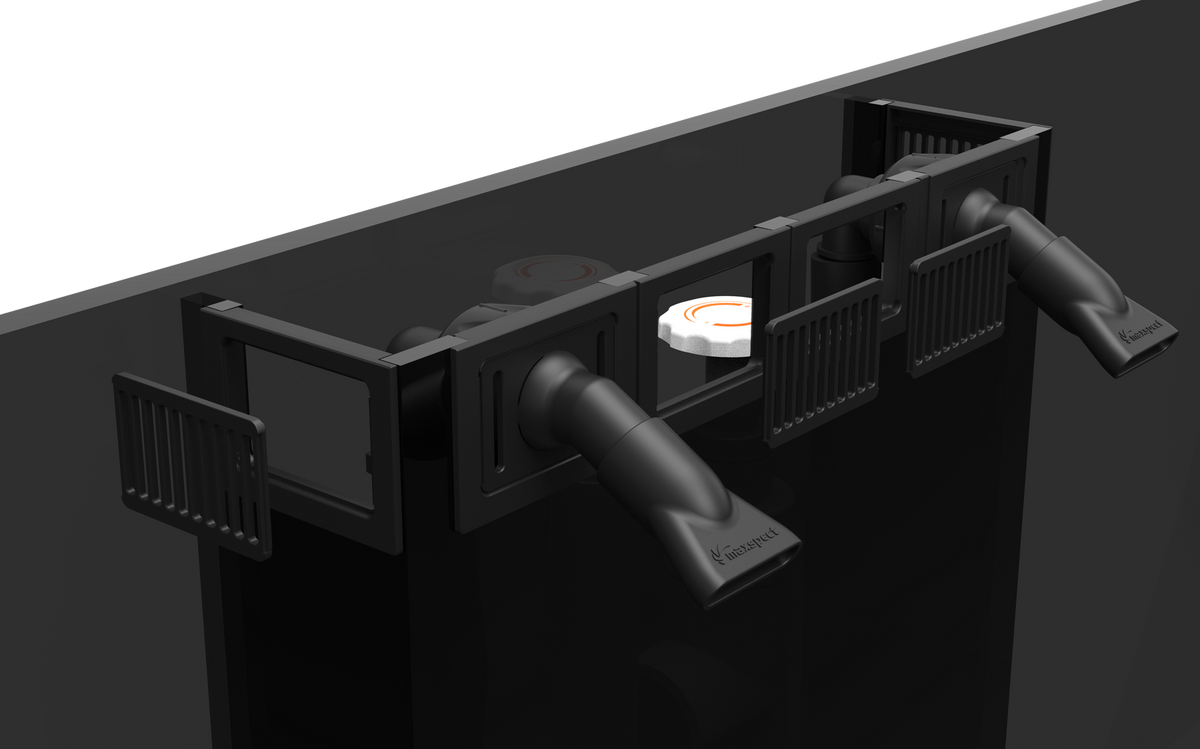

The integrated overflow features a patented water-level adjustment valve and removable comb, while the multi-directional double return spout allows you to direct return flow around your aquascape.

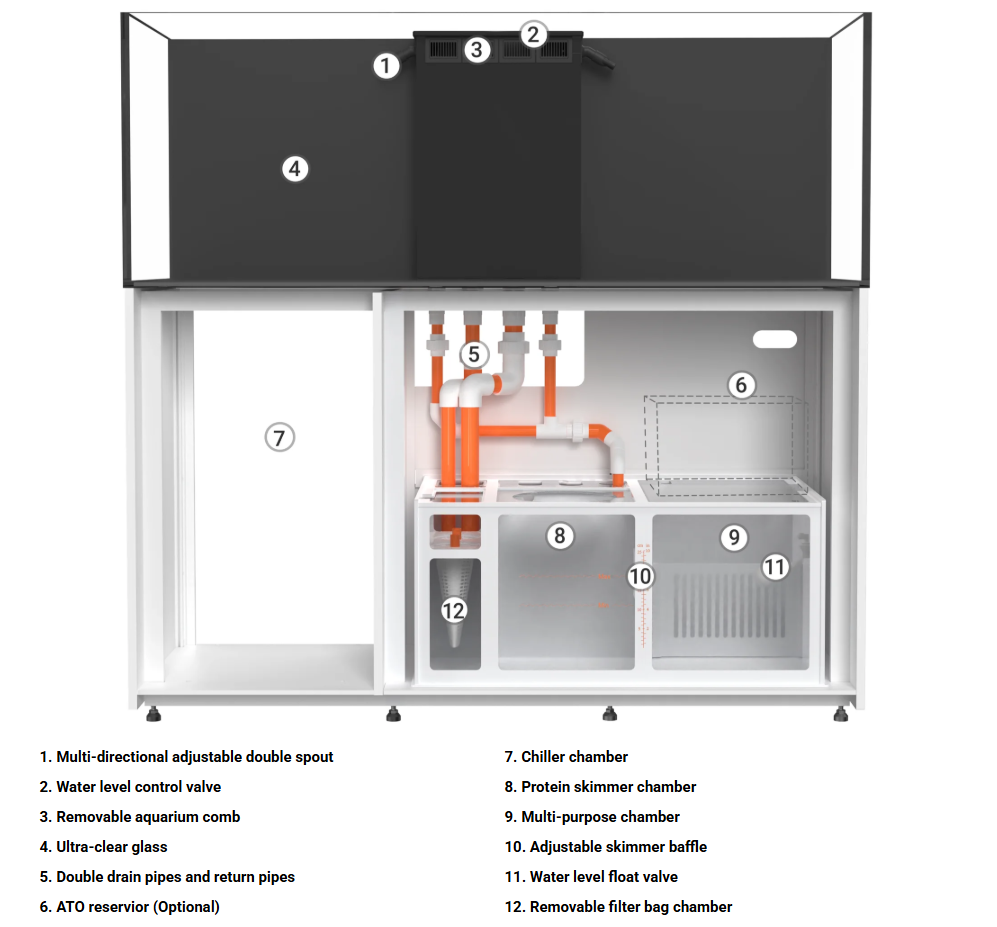

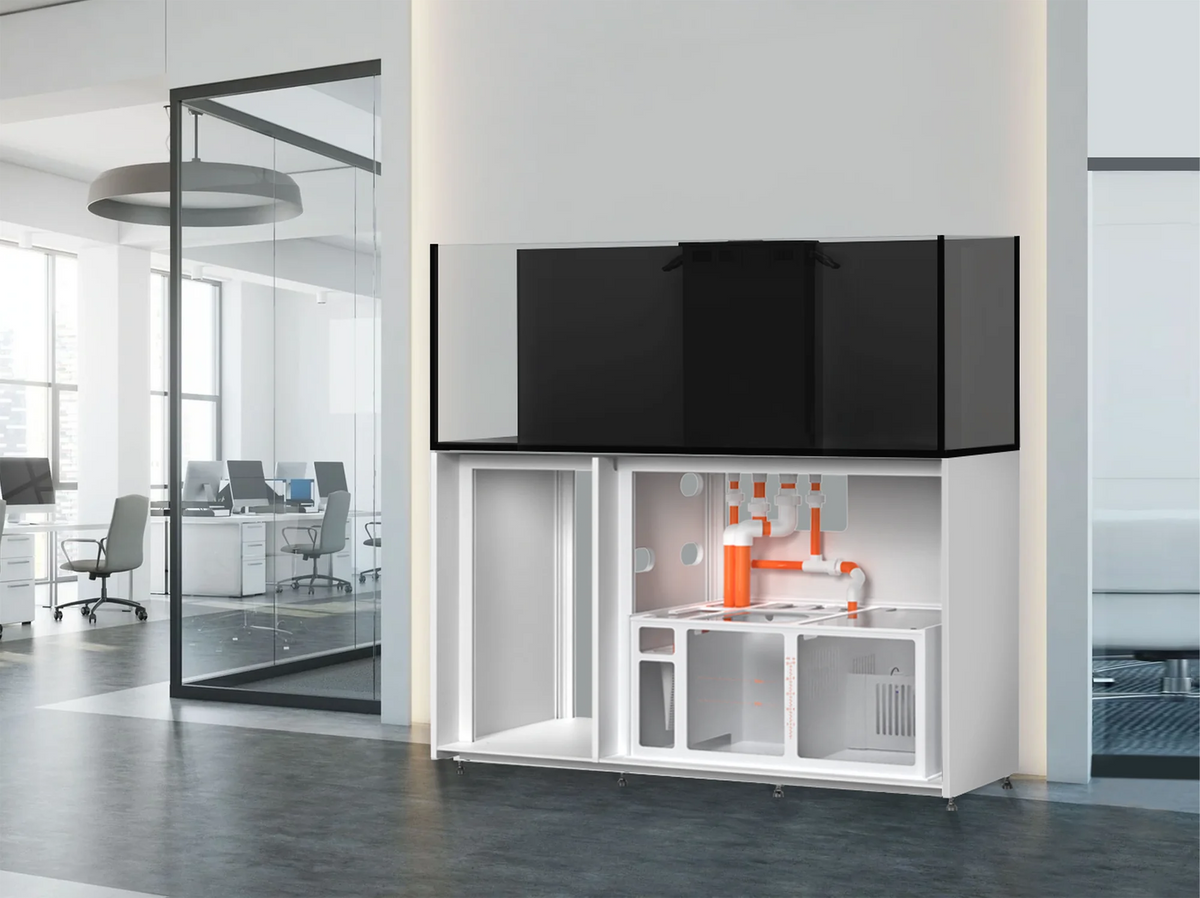

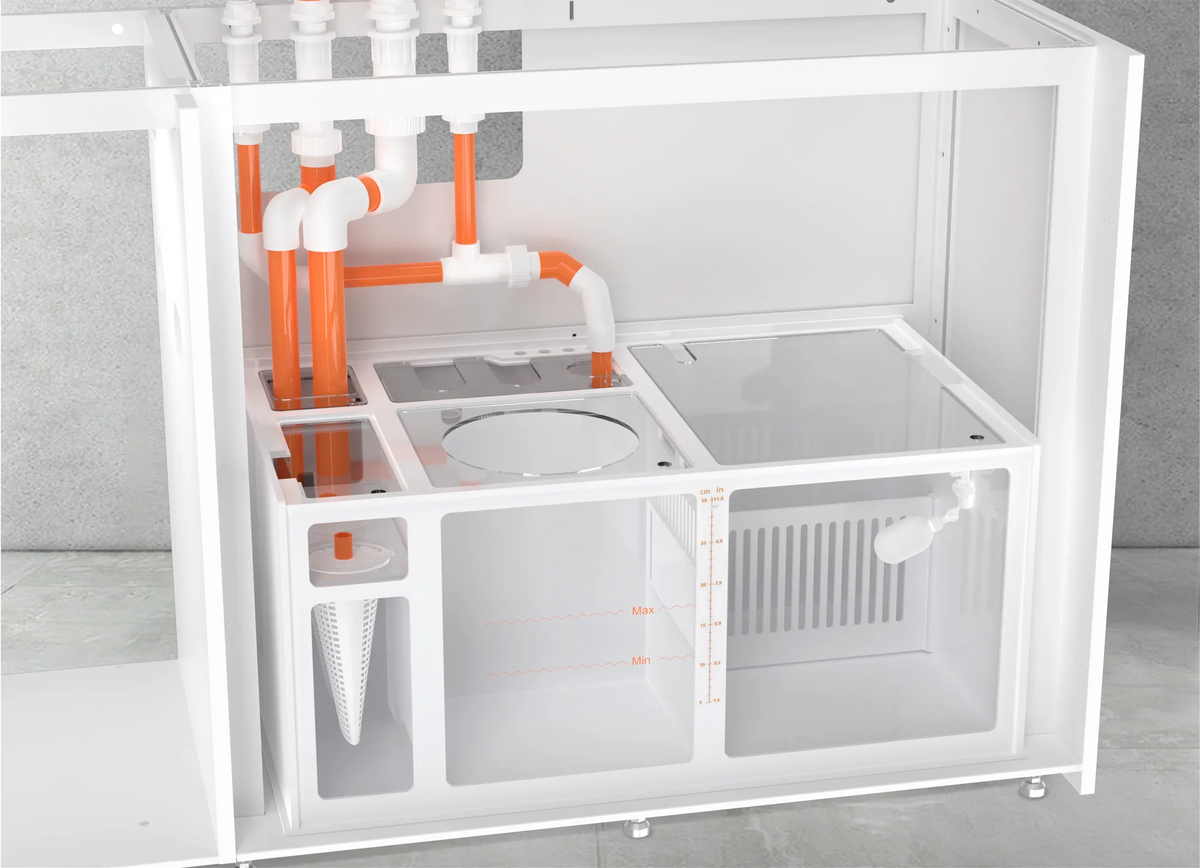

The sump is equally purpose-built, with dedicated areas for a protein skimmer, refugium, reactors and other equipment.

Built for the Reef Keeper Who Wants Room to Grow

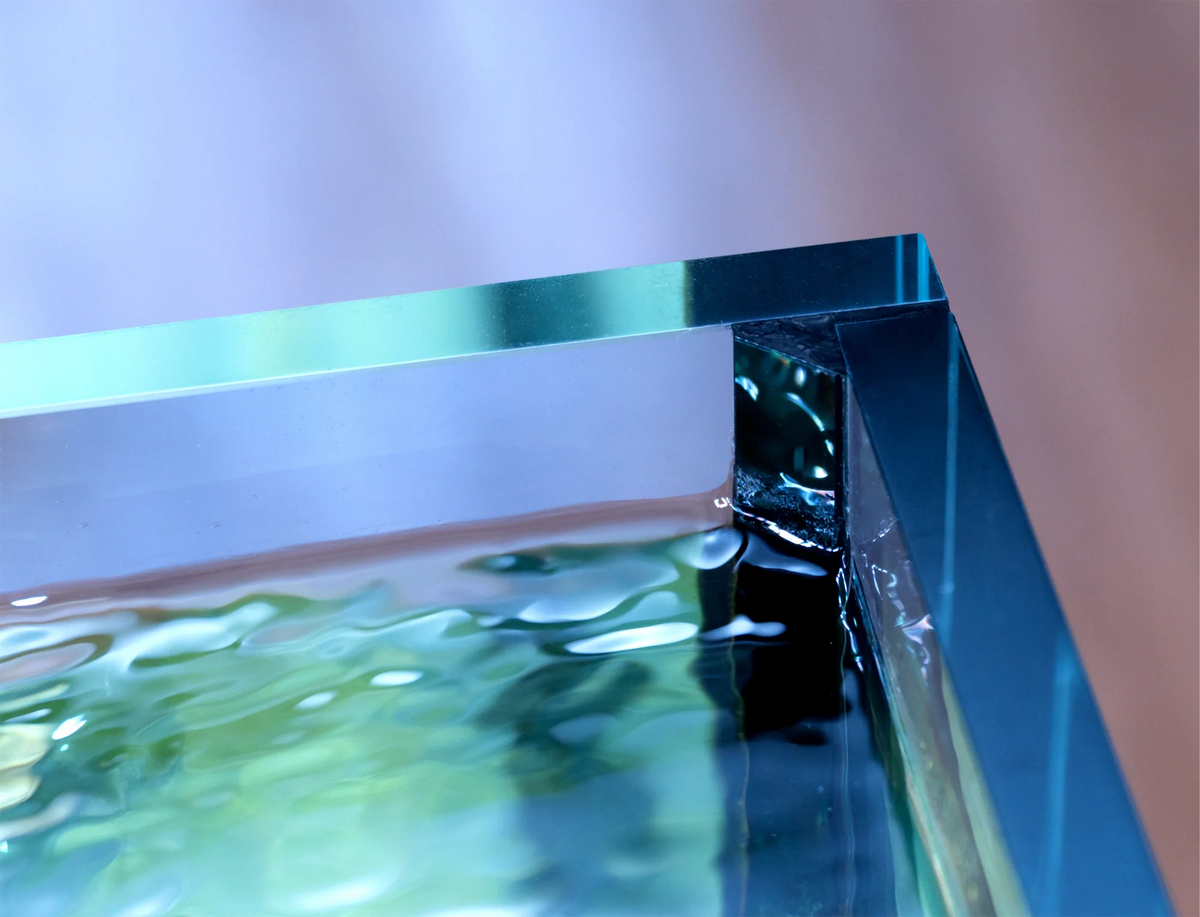

• 12mm ultra-clear rimless glass

• Reinforced silicone seams

• 80-gallon / 303L display volume

• Approximately 109.1-gallon / 413L total system volume

• Integrated surface film collector

• Patented overflow water-level adjustment valve

• Removable aquarium comb

• Multi-directional adjustable double return spout

• Dual drain and return plumbing

• Two micron filter units

• Removable filter bag chamber

• Adjustable protein skimmer baffle

• Integrated in-sump ATO float valve

• Optional 2.5-gallon / 9L ATO reservoir

• Dedicated refugium chamber

• Dedicated chiller pump chamber

• Reactor/equipment chamber

• Aerospace-grade aluminum cabinet frame

• Anti-corrosion coating

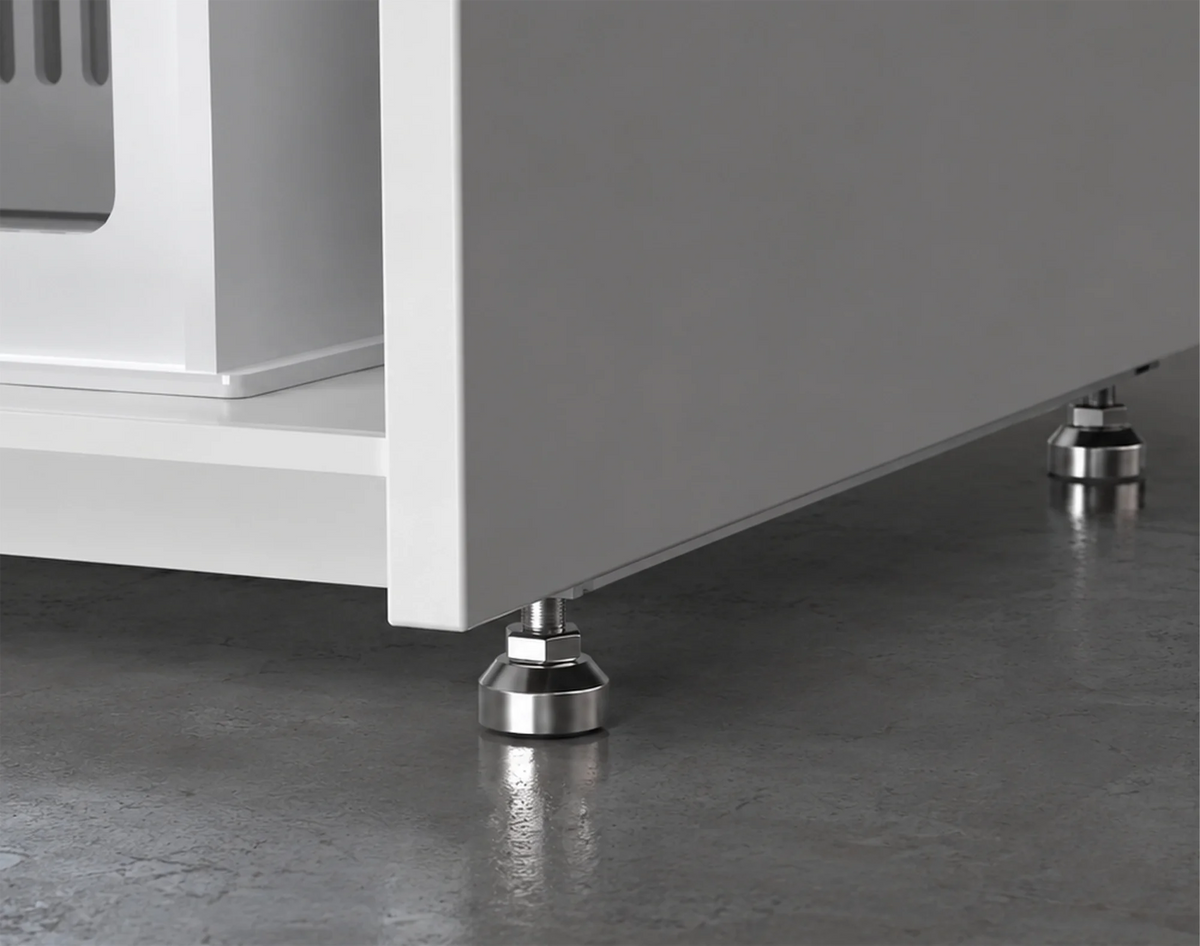

• Adjustable leveling feet

• Ergonomic PVC sump

• Professionally designed cabinet panels

LR-120 Specifications

Display Aquarium

• Display dimensions: 48" L × 22" W × 22" H

• Metric dimensions: 120 × 55 × 55 cm

• Water level: 20" / 49 cm

• Display volume: 80 gallons / 303 L

• Glass thickness: ½" / 12 mm ultra-clear glass

Sump

• Sump volume: 29.1 gallons / 110 L

• Sump dimensions: 27" × 20" × 16"

• Approx. metric dimensions: 68 × 49 × 39.5 cm

• Return pump chamber: 12¼" × 6¾"

• Multi-purpose chamber: 18" × 7¼"

• Refugium chamber: 7¼" × 11"

• Chiller pump chamber: 7¼" × 6¾"

• Reactor/equipment chamber: 11" × 5¾" × 10¼"

• Protein skimmer chamber: 17" × 11"

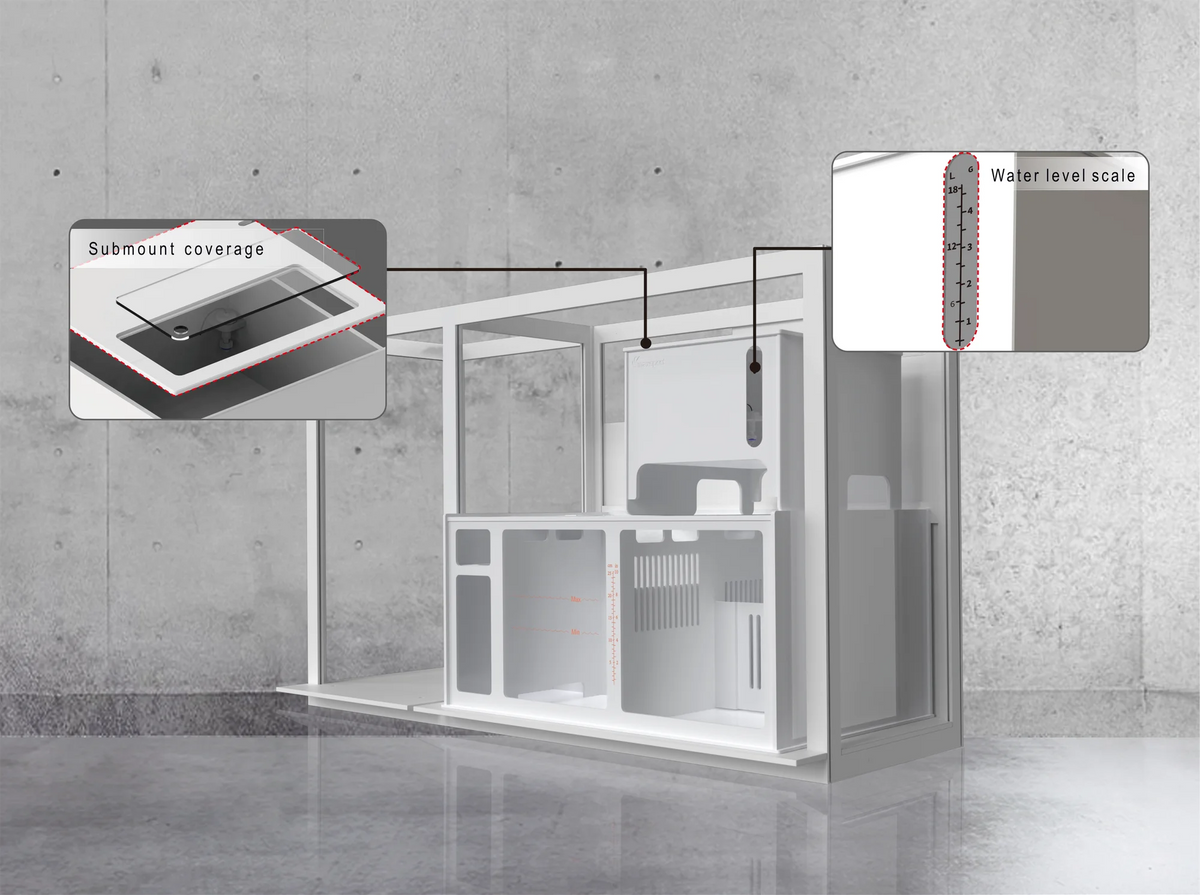

• Adjustable skimmer water level: 6¼"–9½" / 16–24 cm

Cabinet

• Cabinet dimensions: 48" L × 22" W × 35" H

• Metric dimensions: 120 × 55 × 87 cm

• Overall system height: 56" / 142 cm

• Adjustable leveling feet

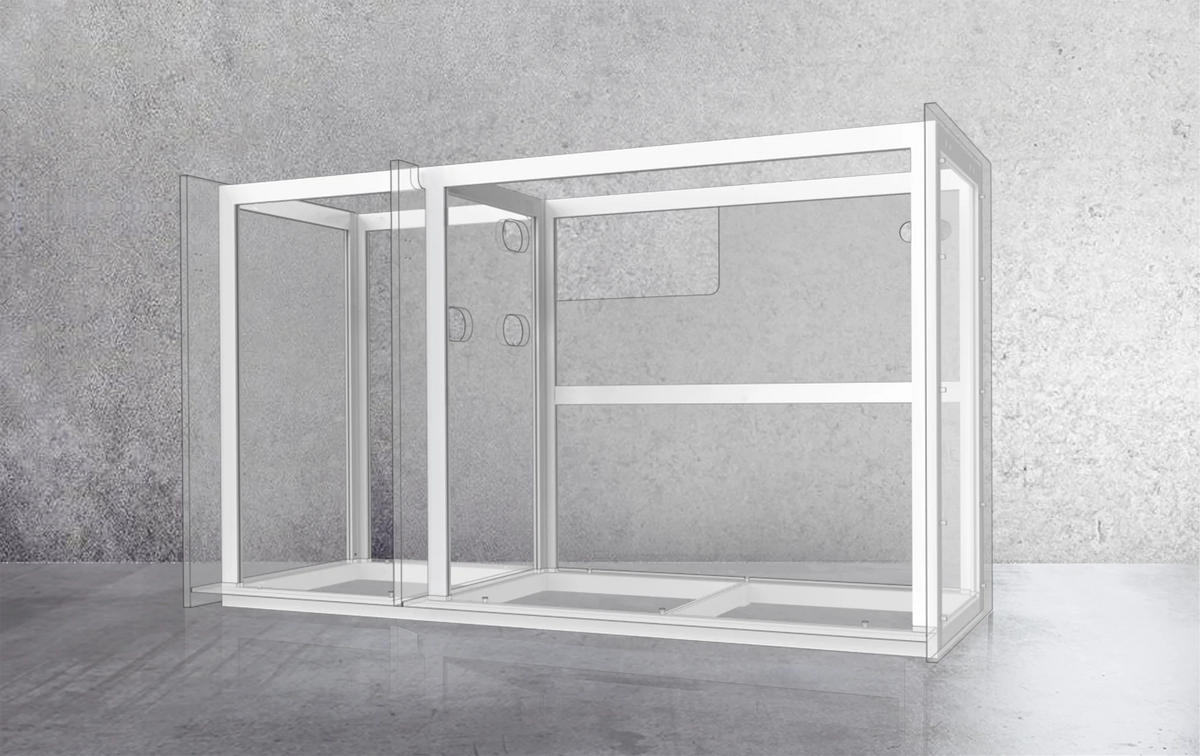

• Aerospace-grade aluminum frame

• Anti-corrosion coating

Chiller Section

• Approx. 12½" × 20" × 21½"

• Approx. 32 × 51 × 55 cm

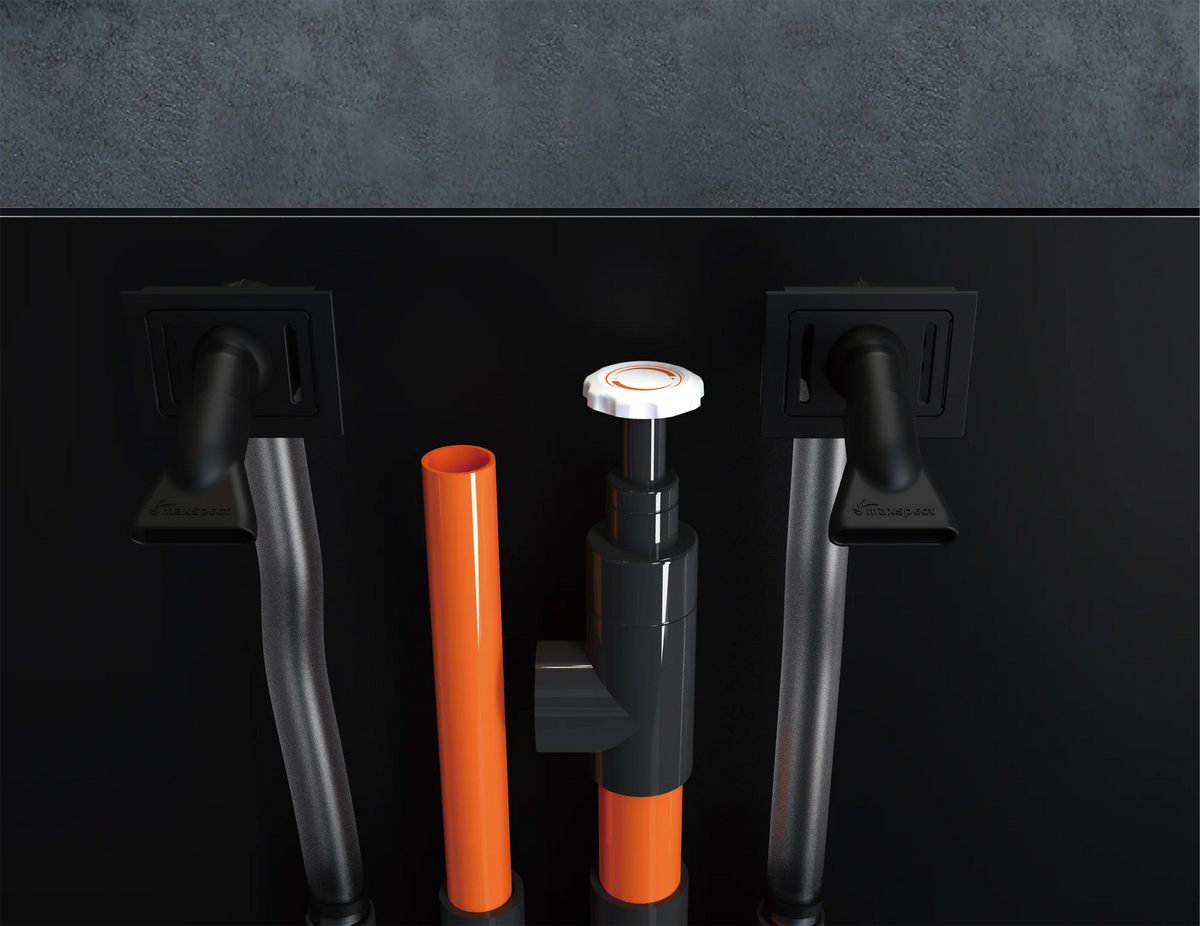

Plumbing

• Return: 1" / 25 mm

• Main drain: 1½" / 40 mm

• Emergency drain: 1¼" / 32 mm

Total System Volume

• Approximately 109.1 gallons / 413 L

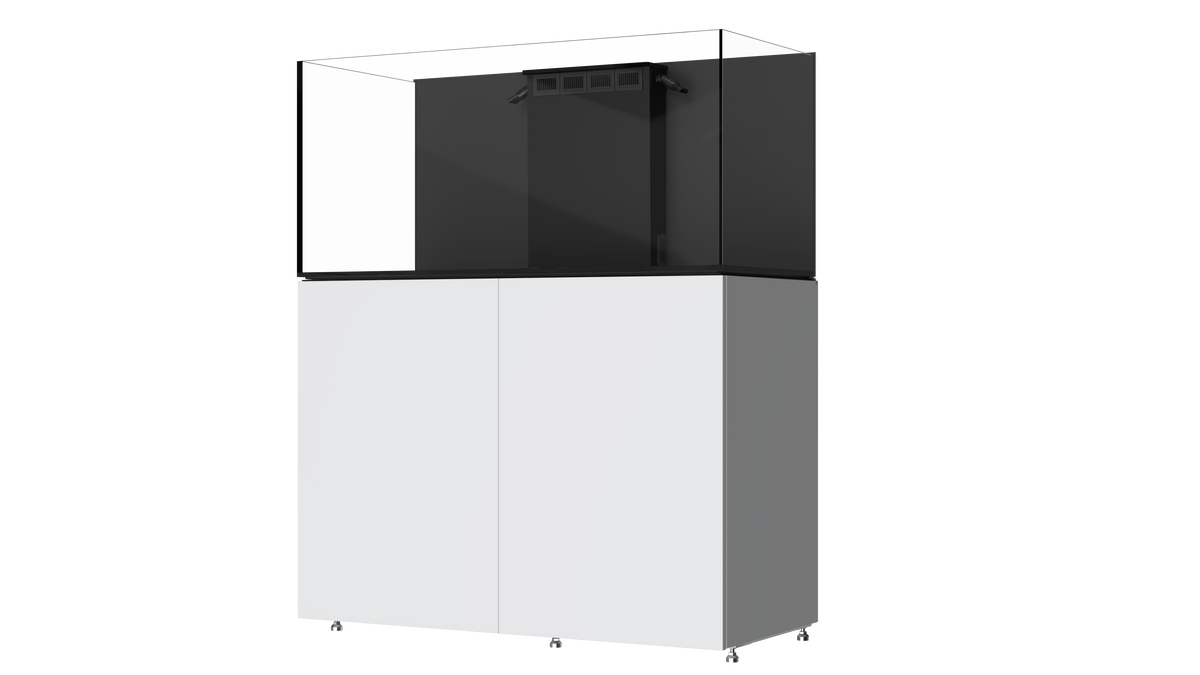

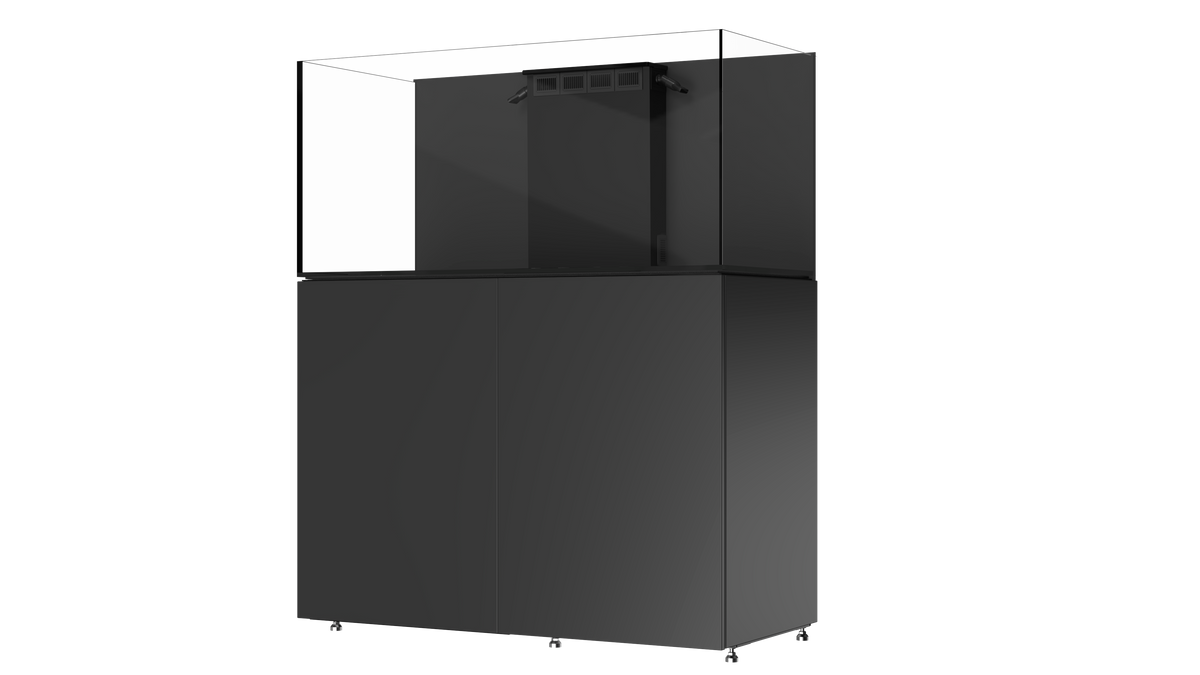

Available Colors: Ebony Black and Pearl White

Optional 2.5-Gallon ATO Reservoir

The LR-120 supports an optional precision PVC ATO reservoir with 2.5 gallons / 9L of capacity. Combined with the integrated sump float valve, it provides a clean and convenient way to manage evaporation.

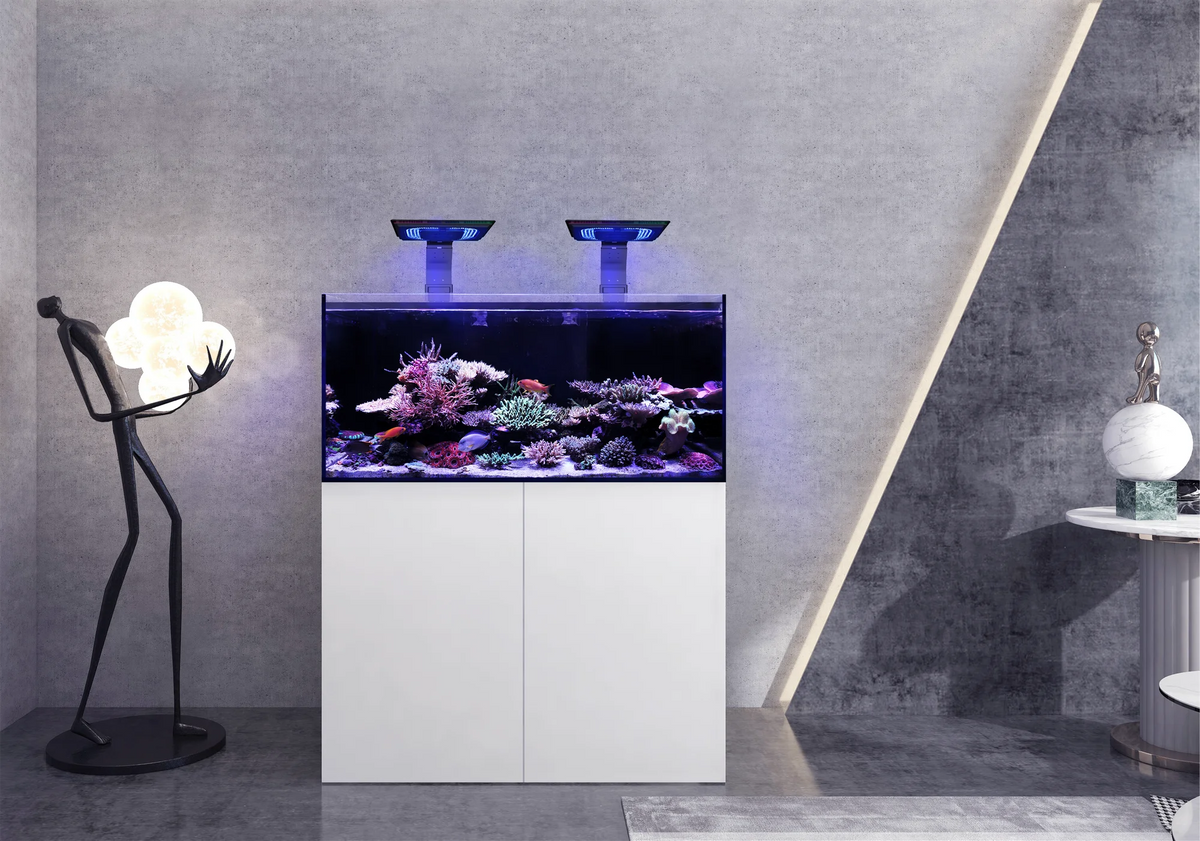

Designed to Become the Centerpiece

The LR-120 gives you the room to build an aquascape with depth, negative space and coral growth in mind — while keeping the filtration and equipment organized below the display.

More room to create. More room to grow. More reef.

ATO reservoir sold separately.
