Maxspect Lagoon Reef-Ready LR-090 — Rimless Reef Aquarium System

More Room for Your Reef. More Freedom for Your Aquascape.

The Maxspect Lagoon Reef-Ready LR-090 gives reef keepers a spacious 90cm × 50cm display while maintaining the clean, modern look of a premium rimless aquarium.

Built with 12mm ultra-clear glass, reinforced silicone seams, an integrated adjustable overflow, and a dedicated PVC filtration sump, the LR-090 is designed around the realities of serious reef keeping: efficient filtration, accessible equipment, organized plumbing, and a display that lets your aquascape take center stage.

Whether you're planning a coral-dominated reef, mixed reef, or a highly customized aquascape, the LR-090 gives you a substantial canvas without moving into the footprint of the larger 120cm and 150cm systems.

A Reef System Designed From the Bottom Up

The LR-090 combines the display, overflow, cabinet and sump into one cohesive system.

A patented water-level adjustment valve inside the overflow gives you precise control of the display water level, while the removable overflow comb makes maintenance easier. The adjustable double return spout allows you to direct water where your aquascape needs it.

Underneath, the PVC sump provides dedicated filtration areas with an adjustable protein-skimmer baffle and removable filter-bag chamber.

Premium Construction Meets Practical Reefkeeping

• 12mm ultra-clear rimless glass

• Reinforced silicone seams

• Integrated surface film collector

• Patented water-level adjustment valve

• Removable overflow comb

• Multi-directional adjustable double return spout

• Dual drain and return plumbing

• Two micron filter units

• Removable filter bag chamber

• Adjustable protein skimmer baffle

• Integrated in-sump ATO float valve

• Optional 1.5-gallon / 6L ATO reservoir

• Aerospace-grade aluminum cabinet frame

• Anti-corrosion cabinet coating

• Professionally designed cabinet panels

• Adjustable leveling feet

• Ergonomic PVC sump

• Dedicated equipment and filtration chambers

LR-090 Specifications

Display Aquarium

• Display dimensions: 36" L × 20" W × 20" H

• Metric dimensions: 90 × 50 × 50 cm

• Water level: 18" / 44 cm

• Display volume: 48.6 gallons / 184 L

• Glass thickness: ½" / 12 mm ultra-clear glass

Sump

• Sump volume: 17.9 gallons / 68 L

• Sump dimensions: 19" × 18" × 16"

• Approx. metric dimensions: 47 × 45 × 39.5 cm

• Return pump chamber: 9" × 5½"

• Multi-purpose chamber: 10½" × 6¼"

• Reactor/device chamber: 5¾" × 4½"

• Protein skimmer chamber: 11" × 9½"

• Adjustable skimmer water level: 6¼"–9½" / 16–24 cm

Cabinet

• Cabinet dimensions: 36" L × 20" W × 35" H

• Metric dimensions: 90 × 50 × 87 cm

• Overall system height: 54" / 137 cm

• Adjustable leveling feet

• Aerospace-grade aluminum frame

• Anti-corrosion coating

Chiller Section

• Approx. 12¼" × 18½" × 21½"

• Approx. 31 × 47 × 55 cm

Plumbing

• Return: 1" / 25 mm

• Main drain: 1½" / 40 mm

• Emergency drain: 1¼" / 32 mm

Total System Volume

• Approximately 66.5 gallons / 252 L

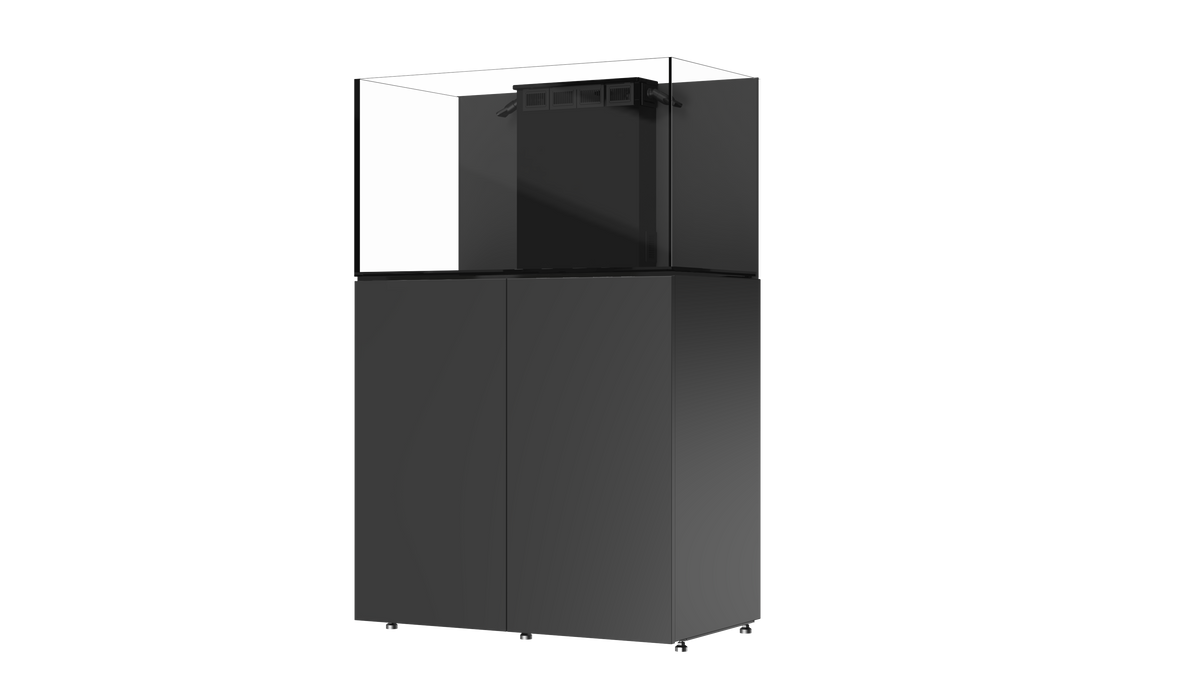

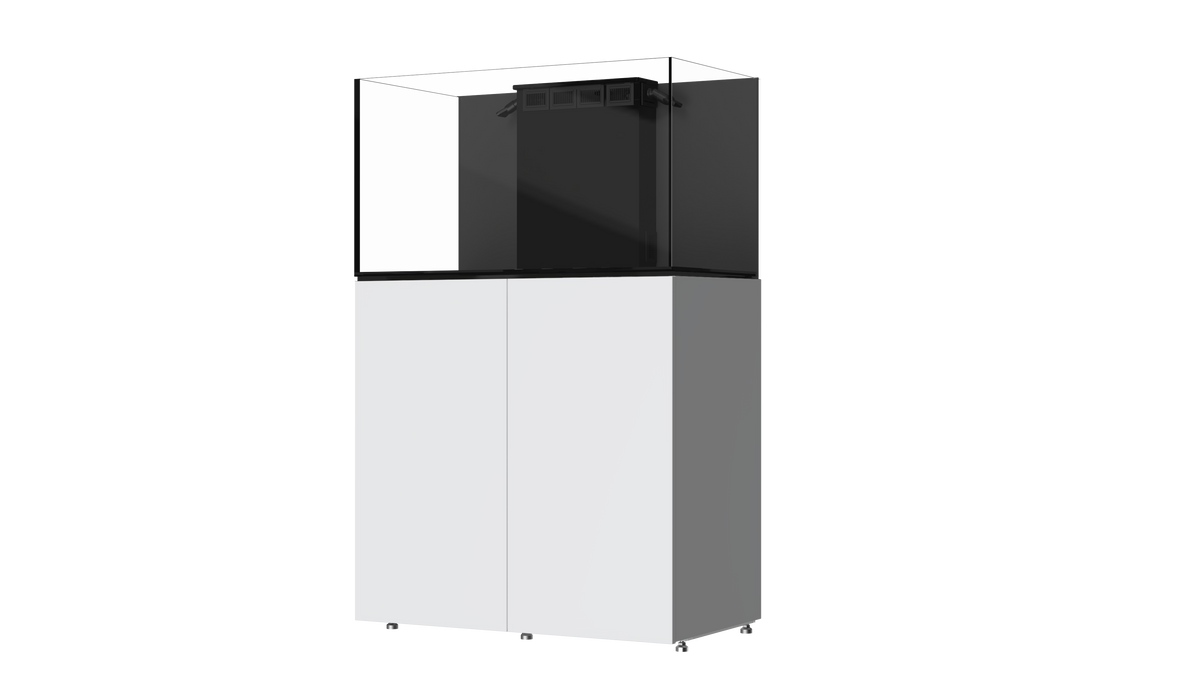

Available Colors: Ebony Black and Pearl White

Optional ATO Reservoir

The optional precision PVC ATO reservoir holds 1.5 gallons / 6L and works with the integrated in-sump float valve to help manage evaporation.

Your Reef. Your Aquascape. Your Centerpiece.

The LR-090 hits a versatile sweet spot for reef keepers who want more horizontal aquascaping room and filtration capacity than a compact system, while keeping a clean and refined footprint.

A premium rimless display above. A purpose-built filtration system below. Everything designed to work together.

ATO reservoir sold separately.
